Floor Framing

- a chapter which could otherwise be called -

The Pursuit of the Perfect Bubbles.

Here is a view south across the pavilion site, with the foundations ready to go and the cedar for the beams piled beyond. (photo by Barry Finnen)

Carpenter Dave works with volunteers Vincent and John to nail together the 4-ply 2x12 floor beams.

Here are the floor beams set in place ...

... and bolted into the beam seats.

John and Vincent prepare the ledger boards, which attach to the beams to support the floor joists.

Here are the ledgers, ready to be installed.

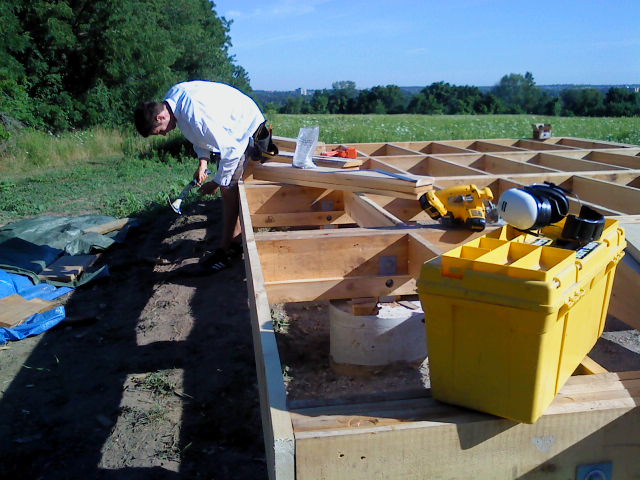

Carpenter Dave installs some floor joists (on one of the very hot days in July) ...

... and adds the rim joist to finish off the floor structure.

Here is a view over the completed floor structure, at dusk.

The sill plates (which sit at the base of each wall) are the first pieces of rough-sawn wood to be added to the structure.

Now the floor is ready for the decking! It was exciting to see the building footprint take shape ...

... and to find those perfect bubbles.
